Full Enclosed 900x900mm Precision CNC Fiber Laser Cutting Machine Custom For Ndfeb Magnet Cutting

Product Categories

Taiyi Laser Technology Company Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Full Enclosed 900x900mm Precision CNC Fiber Laser Cutting Machine Custom For Ndfeb Magnet Cutting
Brand: TAIYI
Price: 1 USD

Brand Name : TAIYI

Model Number : TY-QG6018

Certification : CE

Place of Origin : Dongguan, China

MOQ : 1

Price : Contact us for the price

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 200 Sets/month

Delivery Time : 15-30 work days

Packaging Details : Export standard packing

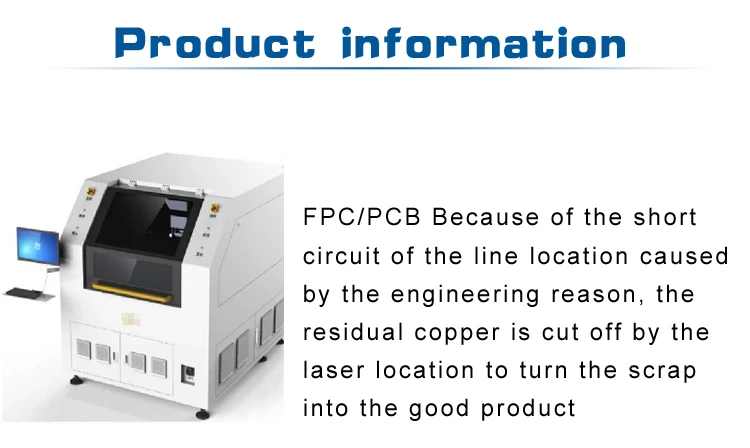

Product name : PCB Laser Cutting Machine

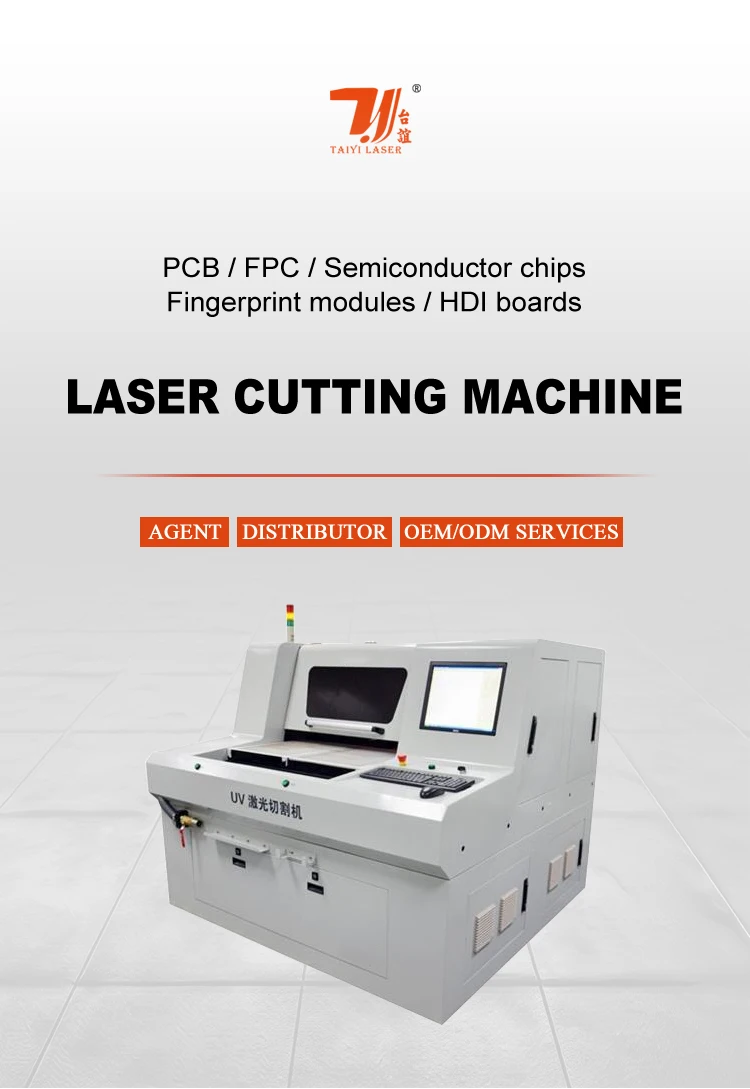

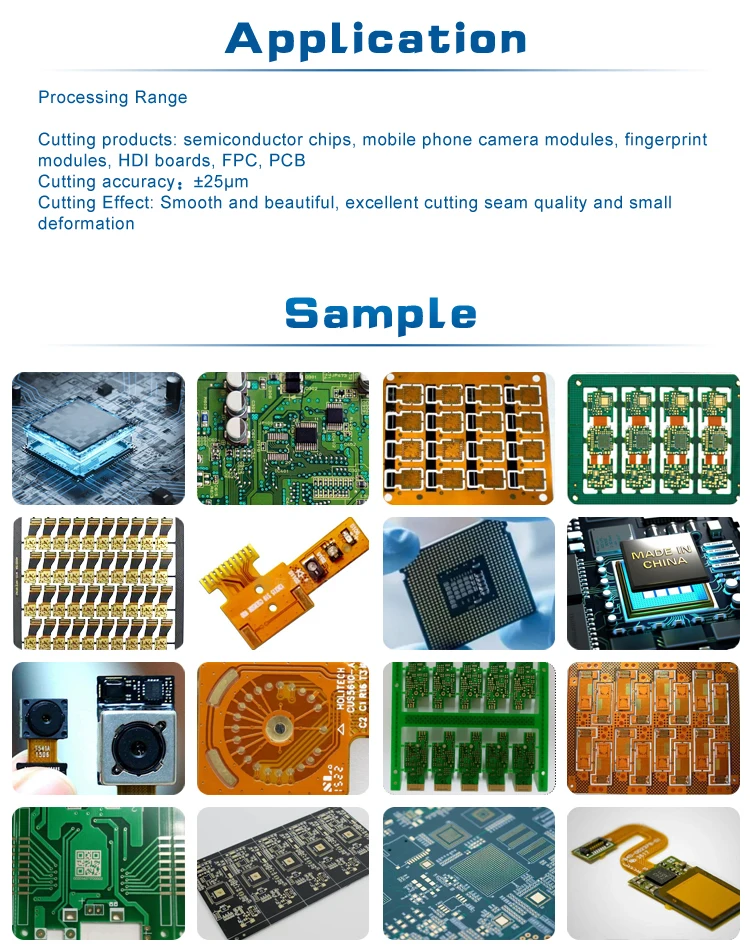

Application : Fingerprint modules/ HDI boards/ FPC/ PCB

Laser source : Inno

Machine Type : Pulse

Cutting accuracy : ±25μm

Laser wavelength : 355 nm

Pulse width : 10-40ns

Voltage : 220V/10A/50Hz

Cutting Effect : Smooth and beautiful, excellent cutting seam quality

Contact Now

Full Enclosed 900x900mm Precision CNC Fiber Laser Cutting Machine Custom For Ndfeb Magnet Cutting

PCB laser cutting machine Full Enclosed 900x900mm Precision CNC Fiber Laser Cutting Machine Custom For Ndfeb Magnet Cutting

Item	Spec
Dimension: LxWxH	1500X1600X1720(MM)
Laser source	UV/Green laser
Cutting head	Single head
Thickness	≤3mm(according to material)
Cutting range	500mm X 600mm(single body)
Max range	X axis750mm Yaxis500mm
Scan range	50mm X 50mm
Repeated positioning accuracy	Linear motor X axis/Y axis±3um Z-axis servo motor±0.01mm
Processing accuracy	±20um(After compensation)
Max speed	1m/S with loading(X axis/Y axis)
Maximum acceleration speed	10m/S^2 with loading (X axis/Y axis)
Focus spot	20±5μm(UV)& 25±5μm(Green)
Focus accuracy	3um
Loading model	Manual loading + vacuum adsorption + fixture
Power drive	Linear motor/servo motor
Power	Voltage:220V 50HZ~60HZ
Max Power	3.5KW(Does not include vacuum dust removal device)
Air pressure	0.4-0.6 Mpa
Temperature/humidity	22±2℃/ 50-60%, No condensation
Operator system	WINDOWS7
Vision system with CCD brand	Regular stability systems and brands
Format	DXF,GER
Other	The equipment is equipped with dust collector to absorb dust and waste materials DXF;
Other	Simple man-machine interface and operation panel;
Training	Can arrange
Equipment warranty, maintenance	1year

Full Enclosed 900x900mm Precision CNC Fiber Laser Cutting Machine Custom For Ndfeb Magnet Cutting
